• Oil Filled Submersible Motor
Oil Filled Submersible Motor
Oil Filled Submersible Motor
Product Number:
  • Packaging: Carton or wooden box. (buyer pay if needed)
  • Payment Method: 30% down payment, 70% before shipment. All by T/T.
  • Delivery Time: 60 days, after receiving 30% down payment.
  • Shipping Terms: FOB Kaohsiung.

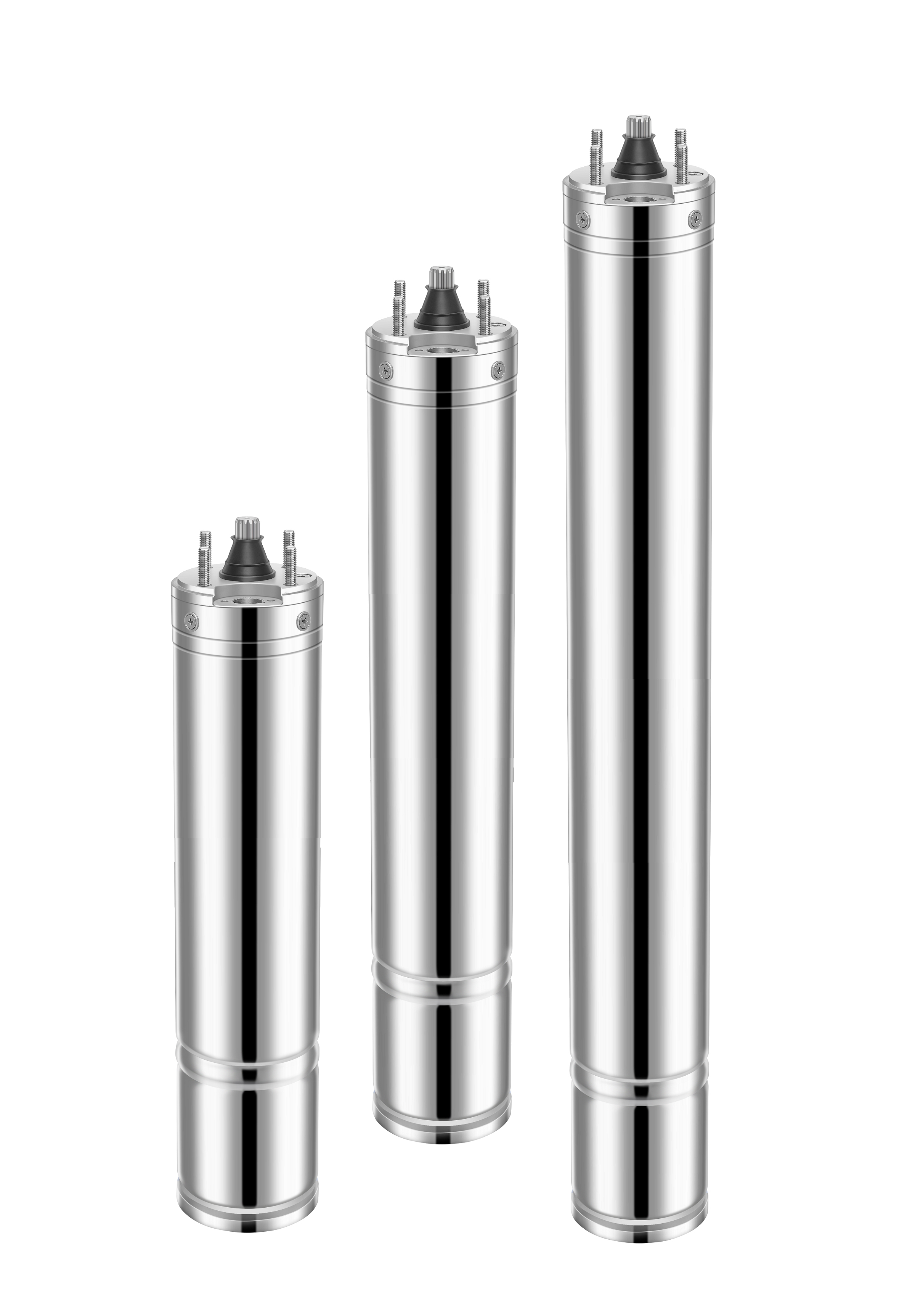

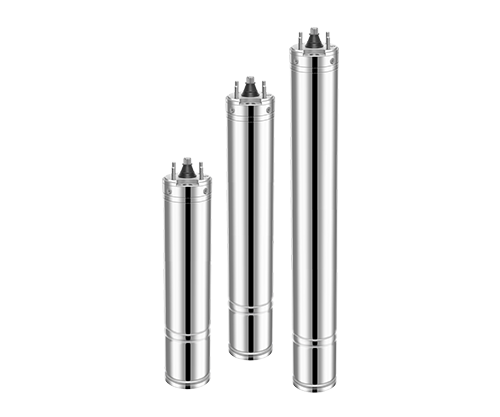

Oil Filled Submersible Motor

*Click on the picture to enlarge

Submersible Motor Products Description

High Efficiency & Superior Electric Performance Oil Filled Submersible Motors

The oil filled submersible motor applies food level oil for lubrication, and high-efficiency ball bearing. And its strong ball bearing makes this product operate stably and durably. Removable water-proof joint design, lacquer covered coil wire are applied in this product.

Main Features:

  • High efficiency
  • Fixable feature
  • Stainless steel exterior shell
  • Superior electric performance
  • Corrosive resistance
  • Hydraulic pressure resistance

So that, it can be applied in the depth about 300M, and also it can be used with any submersible pumps to provide the power in water.

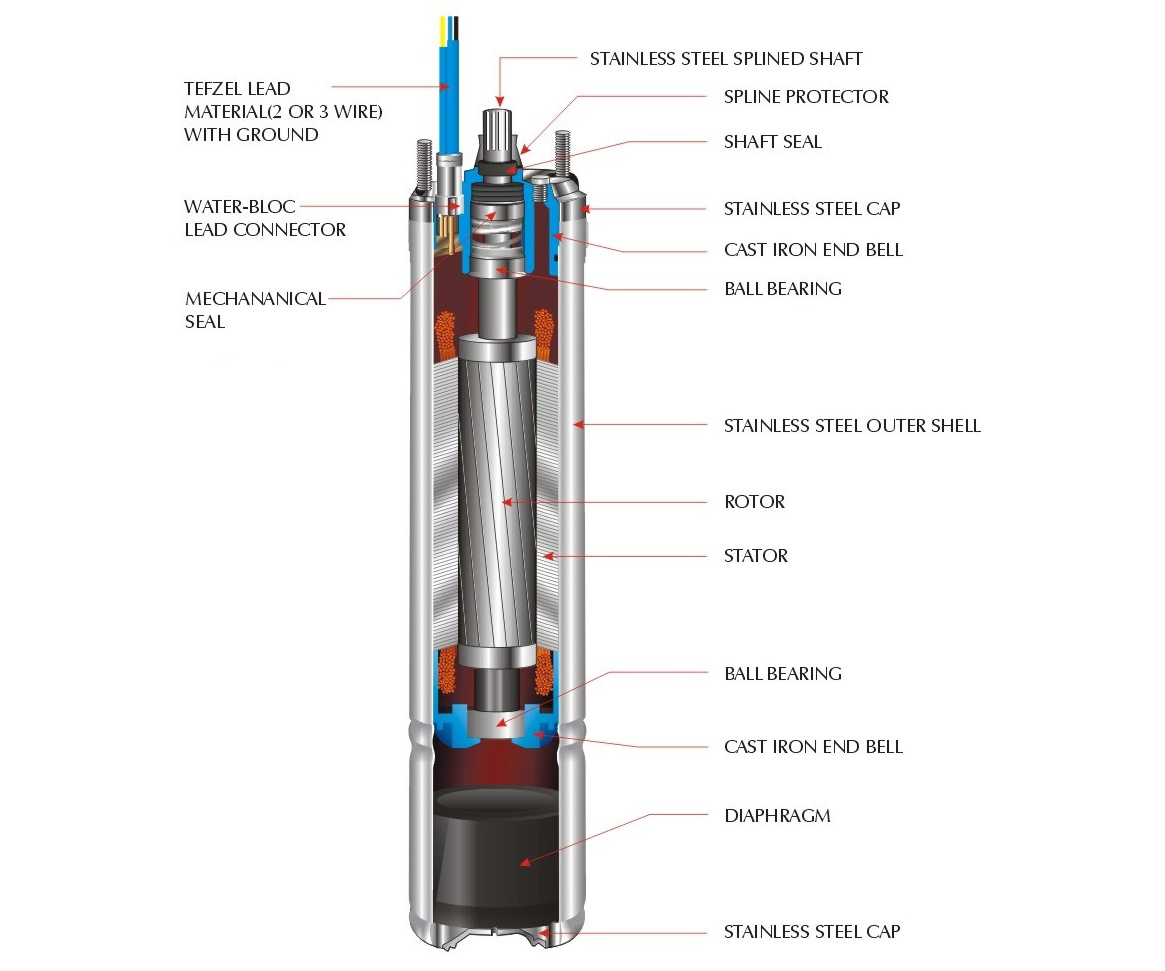

Submersible Motor Products Specification

  • 4” NEMA flange
  • Volts ±10%
  • Degree of protection: IP 68
  • With removable water-proof bolt
  • Max ambient temperature:35℃
  • Cooling flow: min. 0.3 m/s
  • Max starts:40/h
  • Max operating depth:300m
  • Food level oil lubricated
  • Diaphragm of pressure compensation
  • Axial thrust supported form angular ball bearing
  • Axial thrust: from 0.5hp to 1.5hp-2000N ; from2hp to 3hp–3000N; from 4hp to 5.5hp-4000N; from 7.5hp to 10hp-5000N
  • CE, ISO 9001: 2015
