• Stainless Steel Submersible Pump
Stainless Steel Submersible Pump
Stainless Steel Submersible Pump
Product Number:
  • Packaging: Carton or wooden box. (buyer pay if needed)
  • Payment Method: 30% down payment, 70% before shipment. All by T/T.
  • Delivery Time: 60 days, after receiving 30% down payment.
  • Shipping Terms: FOB Kaohsiung.

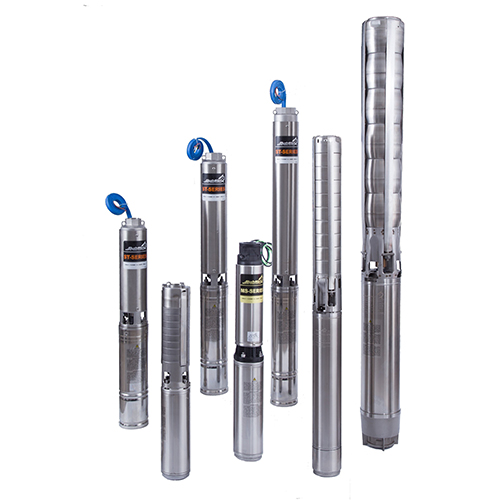

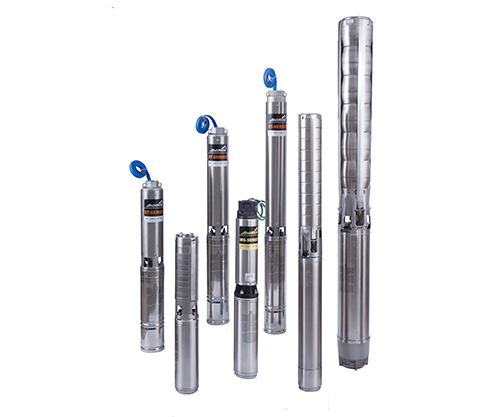

Stainless Steel Submersible Pump

*Click on the picture to enlarge

Submersible Pump Products Description

We specialize in manufacturing stainless steel submersible pump, such as canned type stainless steel submersible pump and oil filled stainless steel submersible pump. Totally with customer’s demands, 4” water cooling and oil cooling motor is able combine with ST pump and SP pump randomly.

Submersible Pump Products Application

  • Irrigation/water/agricultural water supply
  • Municipal and industrial water supply
  • Residential potable water supply

Submersible Pump Products Condition

  • Max ambient temperature:35 Celsius degress
  • Max operational depth: 300 M
  • Clean water use and sand not over 20g/m³
  • Suitable for 4” well

Motor: Canned Type (4” CSP & CST Stainless Steel Submersible Pump)

  • Hermetically-sealed stator
  • Resin infilling system
  • Water lubrication
  • Kingsbury type thrust bearing
  • UL & NSF372 certified materials on single phase 4"CST Stainless Steel Submersible Pump

Motor: Oil Filled (3” OGT Stainless Steel Submersible Pump)

  • Delrin® impeller provides hight efficiency performance and abrasion resistance.
  • LEXAN® diffuser and disc - proven abrasion resistant material.
  • Ceramic shaft sleeve and rubber discharage bearing protect shaft and eliminate sand wear.
  • Floating stage design allows impeller to float independently.
  • Maximunn water temperature :120°F/50°C

Motor: Oil Filled (4” OSP & OST Stainless Steel Submersible Pump)

  • Rewindable motor
  • Food level oil lubrication
  • Axial thrust supported form angular ball bearing

Submersible Pump Products Features

  • NEMA Standard (mounting dimensions)
  • All stainless steel exterior construction
  • Filter check valve
  • Pressure equalizing diaphragm

Download Submersible Pump Products Catalog



Stainless Steel Submersible Pump 50Hz 3inch Stainless Steel Submersible Pump 50Hz

Stainless Steel Submersible Pump 60Hz 3inch Stainless Steel Submersible Pump 60Hz

Stainless Steel Submersible Pump 50Hz 4inch Stainless Steel Submersible Pump 50Hz

Stainless Steel Submersible Pump 60Hz 4inch Stainless Steel Submersible Pump 60Hz
